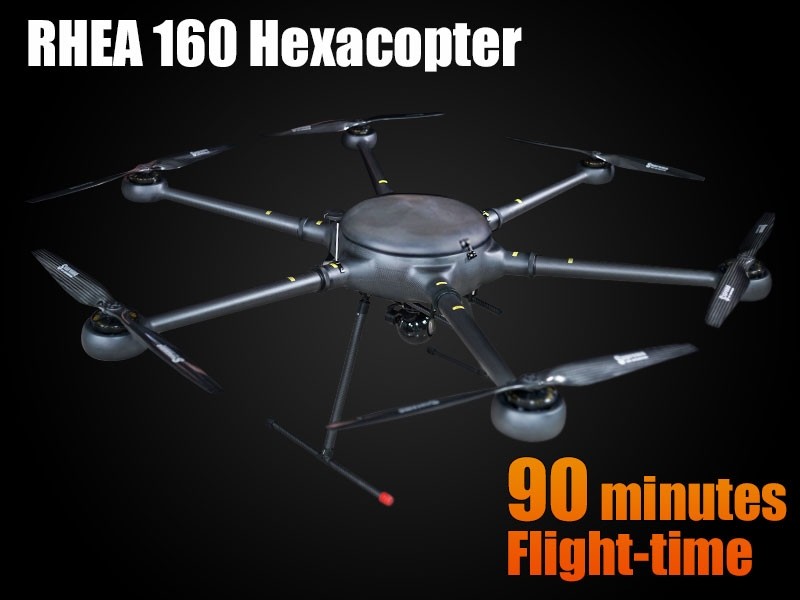

RHEA 160 is a very unique hexacopter featuring high pressure molding full carbon fiber body, light weight and super high strength. To keep its super cool natural carbon fiber appearance, we left it unpainted. The 90minutes no-payload super long flight time makes it a perfect platform for mapping, surveillance, logistics and a lot more applications.

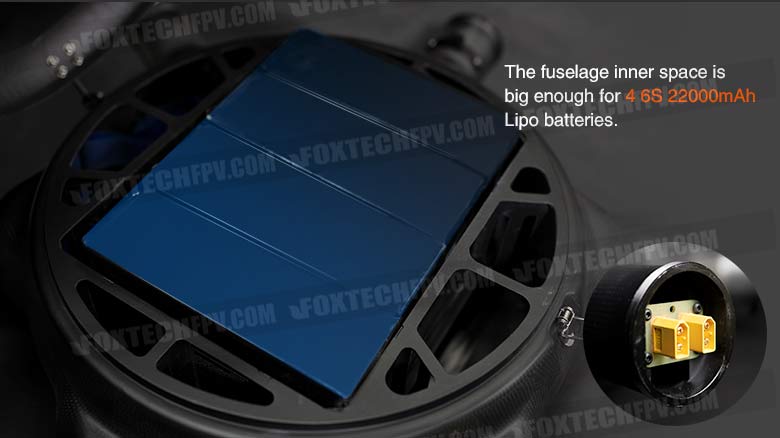

RHEA 160 also features wonderful quick-detach arms and landing gear, making it convenient for storage and easy to transport. Also the new landing gear and gimbal mounting point, new wiring method, create a really vast internal space.  And the new ESC mounting type, features good heat dissipation, so don't need to worry about heat dissipation problem even working with Tethered Power System.

RHEA 160 is equipped with high efficiency power system, the max take-off weight is 28kg at sea level (by using 8120 motor combo, max take-off weight will be 36kg). The flight time can reach 90 minutes(no payload) with 4x6s 30000mAh li-ion batteries. The light and strong fuselage, big wheelbase and powerful system make RHEA 160 a high efficiency drone with long duration and good loading capacity. It can be widely used in surveillance, inspection, survey and mapping loading with different devices.

By loading FOXTECH zooming camera, and also VDC long range video transmission system, RHEA 160 can be used for long range inspection, the video transmission distance can reach 15km.

GPS on RHEA 160 is installed on a space-saving, easy to transport foldable GPS antenna mount holder, whose unique tube design allows GPS wires to be placed inside the tube to avoid abrasion and fatigue.

When equipped with EH314 4K zoom camera and gimbal, RHEA 160 can be used for AI Recognition; When equipped with EH2000 camera RHEA 160 can be used for inspection which can get high-resolution pictures.

RHEA 160 is also able to load Map-01, Map-02, Map-A7R and 3DM V3, Argus V1  oblique camera and PPK system for high definition and precision mapping jobs.

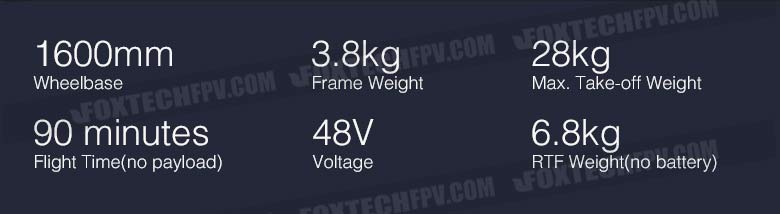

Specification:

Version: RHEA 160 battery-powered Version

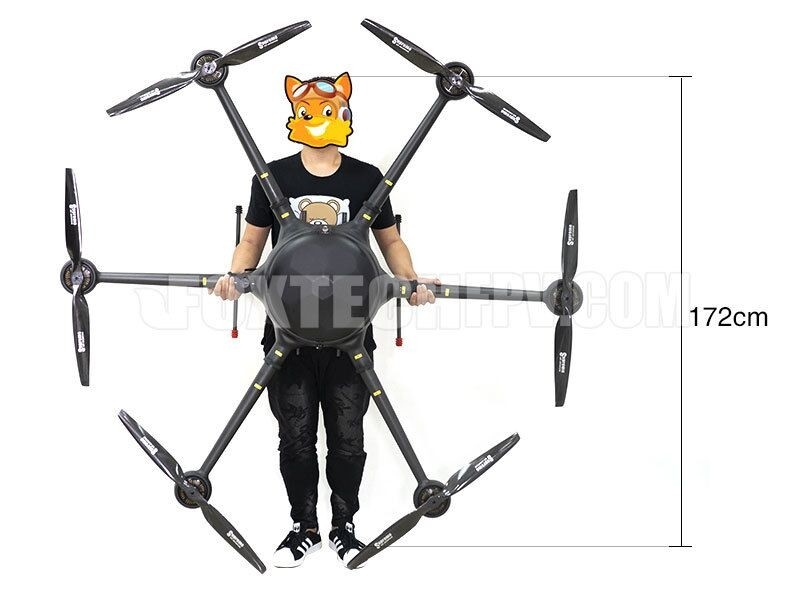

Wheelbase: 1600mm
Frame Weight: 3.8kg(with landing gear)
RTF Weight: 6.8kg(no battery)
Max. Take-off Weight: 25kg (36kg by using 8120 motor or T-motor P80)
Flight Time: 90 minutes(no payload)(4x 6s 30000mAh Li-ion battery);70 minutes(4x 6s 22000mAh Lipo battery)
Voltage: 48V
Battery: 6S 22000mAh Lipo x4; or 6S 30000mAh Li-ion x4

Your Purchase Includes:

Pixhawk Cube Orange RTF Combo:

1x RHEA 160 Hexacopter Frame
1x Foxtech PIVOT V4 Auto Landing Gear
6x T-MOTOR U8 Lite KV85
3x Foxtech Diamond 2995 Propeller
6x T-MOTOR Flame 60A ESC
1x Pixhawk Cube Orange Standard Set with Here 3 GNSS
1x DA16S+ Radio Controller
1x Power Monitor Module
1x Assembling, tuned and Flying Test Service

1x Foxtech GPS Folding Antenna Mount Holder for RHEA 160

A3 Pro RTF Combo:

1x RHEA 160 Hexacopter Frame
1x Foxtech PIVOT V4 Auto Landing Gear
6x T-MOTOR U8 Lite KV85
3x Foxtech Diamond 2995 Propeller
6x T-MOTOR Flame 60A ESC
1x DJI A3 Pro Flight Controller
1x DJI Lightbridge 2
1x Power Monitor Module
1x Assembling, tuned and Flying Test Service

1x Remote Controller Channel Expansion Kit for Lightbridge 2

1x Foxtech GPS Folding Antenna Mount Holder for RHEA 160

CUAV V5+ RTF Combo:

1x RHEA 160 Hexacopter Frame
1x Foxtech PIVOT V4 Auto Landing Gear
6x T-MOTOR U8 Lite KV85
3x Foxtech Diamond 2995 Propeller
6x T-MOTOR Flame 60A ESC

1x CUAV V5+ Flight Controller with NEO V3 Pro GNSS

1x DA16S+ Radio Controller
1x Power Monitor Module
1x Assembling, tuned and Flying Test Service

1x Foxtech GPS Folding Antenna Mount Holder for RHEA 160

Optional:

VDC-7/VDC-15 Long Range Video/Data/RC Transmission System

Foxtech 6S 22000mAh Lipo Battery

Taranis X9D Plus 2019 Radio Controller
